ATA Shipping Cases - Rack Cases

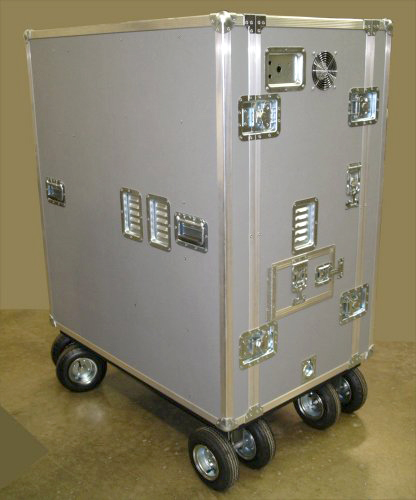

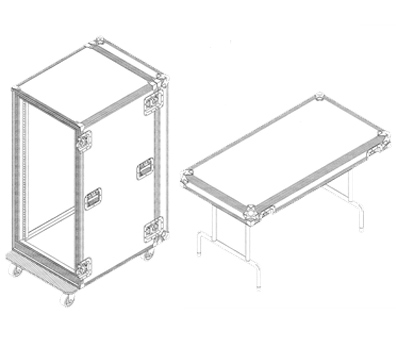

Floating ATA Rack Cases
click to see larger image

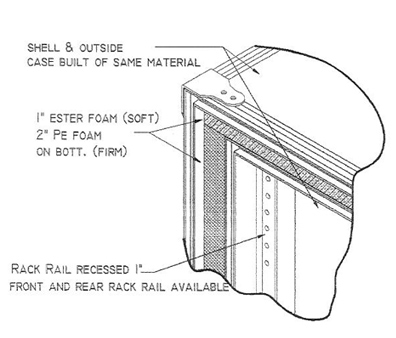

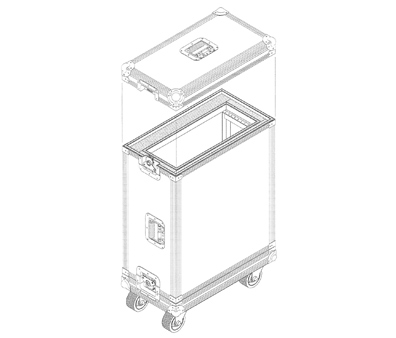

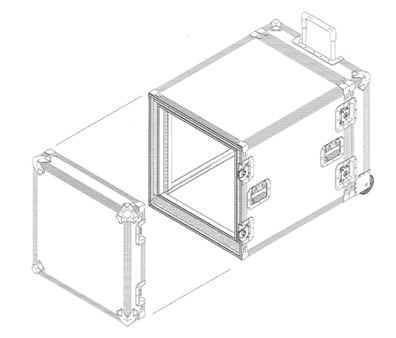

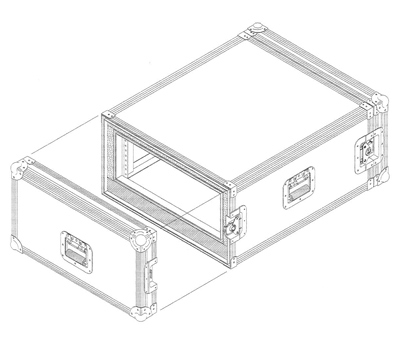

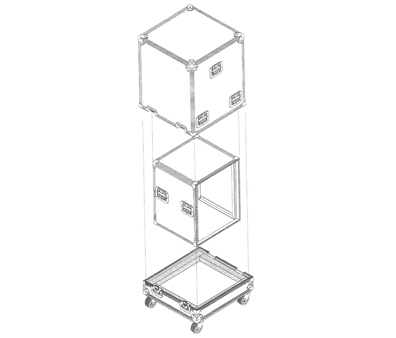

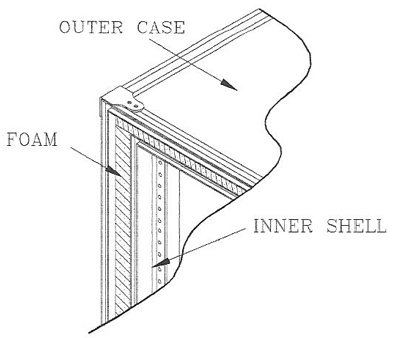

ATA Shipping cases with a floating rack offer a two part case construction with a foam lining between the outer case and inner shell.
The inner shell is made from the same heavy duty materials as our ATA shipping cases and can be constructed in 3/8” or 1/4" thickness.
Standard ‘rackable’ depth is 18” however, depth can be adjusted to meet specific needs.
Rack rail placement is recessed 1" and may be adjusted to meet customer specifications.
Outer case shells can be constructed from 3/8” or 1/4" panels to meet individual needs.
Our ATA rack shells come standard with front and rear removable lids.
Foam lining is 1" ester (soft) foam on 2 sides and top with 2" PE (firm) on bottom and can be adjusted for special applications.

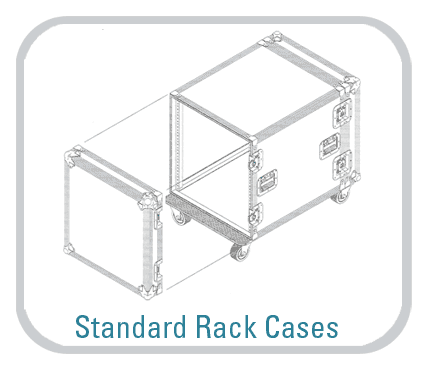

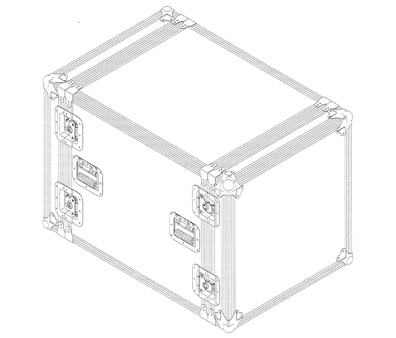

Standard ATA Rack Cases
click to see larger image

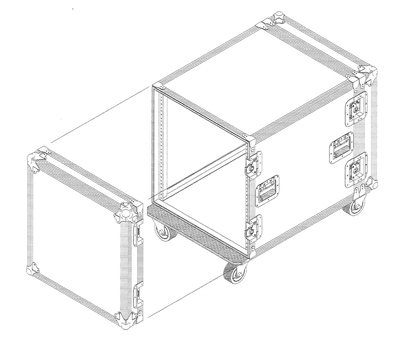

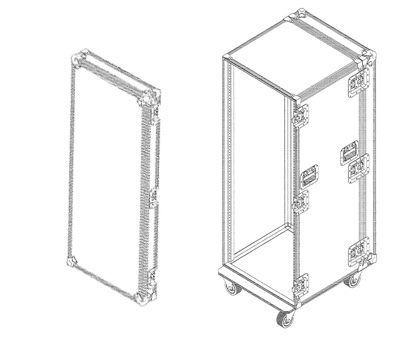

Standard ATA rack cases are an economy version of our floating racks, they are ideal for applications that do not require extensive transportation.
This case can be constructed in 3/8” or 1/4" panel thickness to suit a variety of applications.
Standard ‘rackable’ depth is 18” however, depth can be adjusted to meet specific needs.
Rack rail placement is recessed 1" and may be adjusted to meet customer specifications.
Our ATA rack shells come standard with front and rear removable lids.

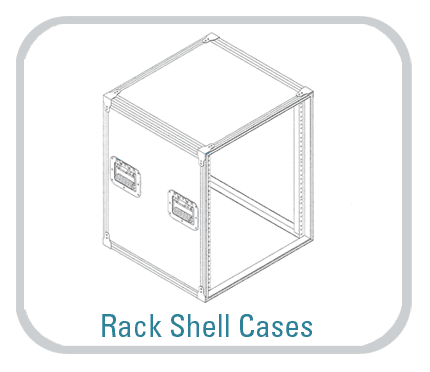

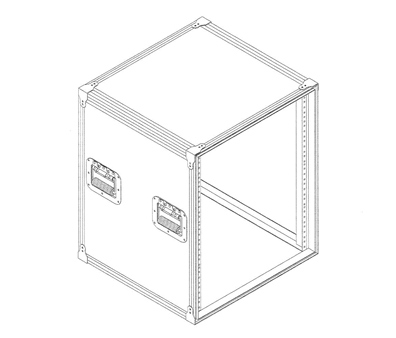

ATA Rack Shell Cases
This case can be constructed in 3/8” or 1/4" panel thickness to suit a variety of applications.
Standard ‘rackable’ depth is 18” however, depth can be adjusted to meet specific needs.
Includes four recessed handles.
